Prius Gen 3 Inverter Logic Board Dual Motor

Brand: EVBMW
Product Code: Pri_G3_V1d
Availability: 5
Attachments:
- Connector_BOM_V1D.pdf

Price: 325.00€
Ex Tax: 325.00€

- +

Add to Wish List

Add to Compare

Ask Question

Email a Friend

Download PDF

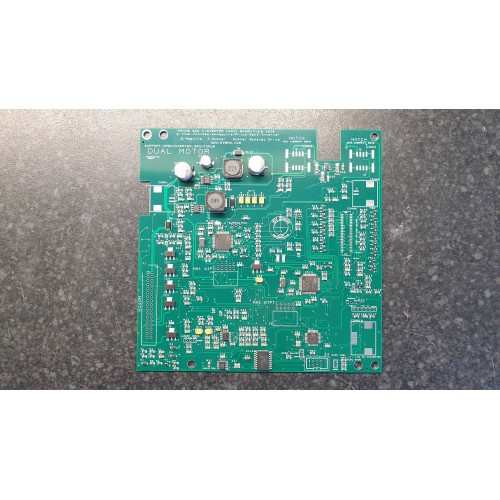

V1d Logic board PCB for the Toyota Prius Gen3 inverter with most SMD parts placed.
Runs BOTH the MG1 and MG2 power stages for running two motors independently such as in a Toyota Hybrid transaxle
Can also run the MG1 power stage for optional AC battery charging via the boost converter.
Price includes worldwide tracked postage.
Connectors NOT supplied apart from 50 way JST.
Please see attached connector BOM for part details.
Supplied fully programmed with two WiFi modules AND 50 Way JST connector.
Also includes AMPSEAL breakout board.

Please see the relevant support thread on the OpenInverter forum linked below for details
Fully open source project.
Support via the openinverter.org Forum
Software and resources available on Github
Software for charging is now available:
https://github.com/celeron55/prius3charger_buck

Delivery : up to 4 weeks from order.
No tax or other surcharges.
